Xiris

ARC, Weld-Pool Welding-Specific Camera

Model XVC-1000e, XVC-O, XVC-1000, XVC-S, SEAM MONITOR

System overview
- MIG, MAG, TIG, Plasma, Laser, Submerged Welding, and all welding processes, the world's best ARC camera dedicated system for monitoring.
- Revolutionary reduction in setup time: Extremely clear images make setup easy
- Dramatic improvement in productivity through reduced rework, scrap generation, and loss
- Allows identification and resolution of welding process issues, enabling welding management
- Remote monitoring and real-time monitoring without the need for on-site visits by workers

Video

Product classification

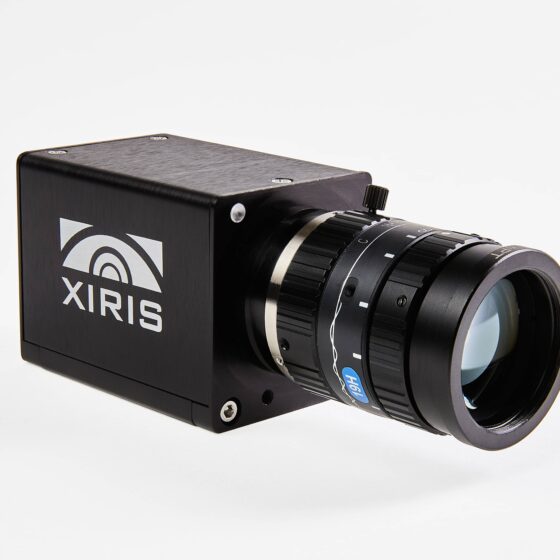

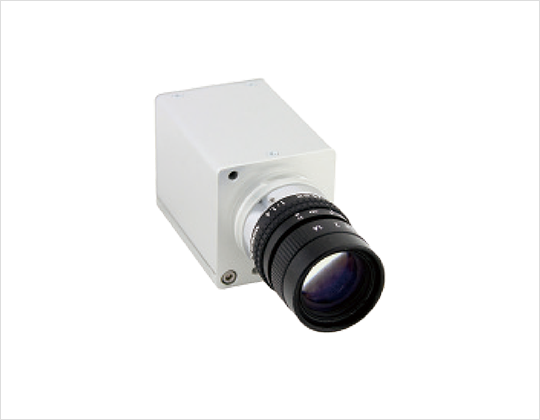

Classification XVC-1000e XVC-O XVC-1000 XVC-S
Product Photo
Purpose Open ARC Weld View Camera Open ARC Weld View Camera Open ARC Weld View Camera Sub ARC Weld View Camera

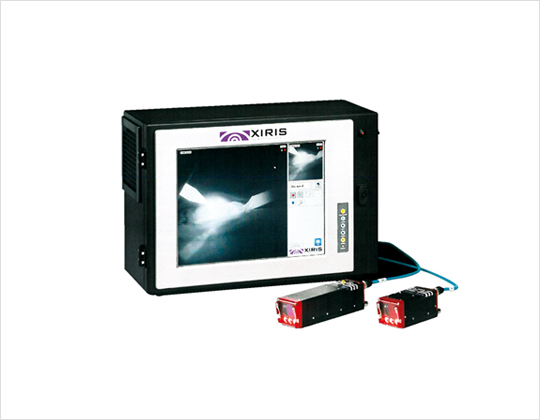

Product Features Connectable to a standard PC All-in-one console Optimized for cost and research Specifically designed
for submerged arc welding

Key functionsand features

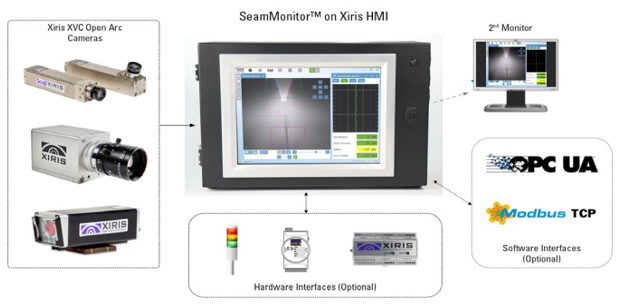

  • SeamMonitor™: Used in conjunction with all XVC Series arc welding cameras, it allows for checking the weld bead size and alignment status.
  • It is equipped with features such as image triggering, general-purpose I/O, image windowing, and a welding arc detector to maximize image quality and reliability.

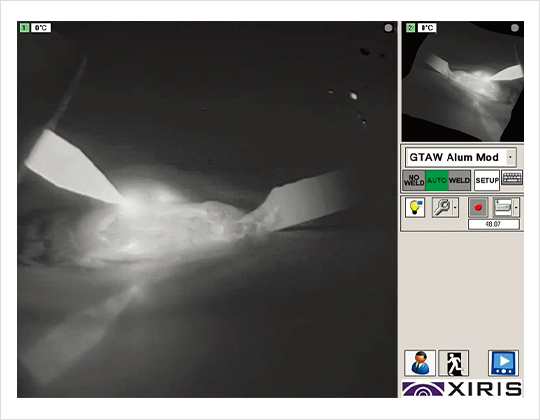

  • It can identify dark ambient backgrounds and molten pools while providing a clear view around the welding torch tip simultaneously
