Welding waveform analyzer

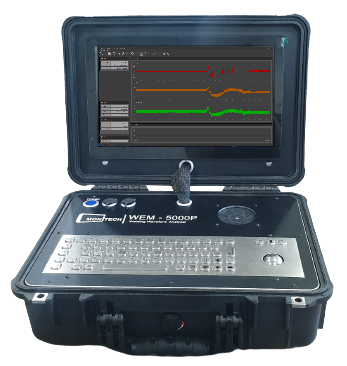

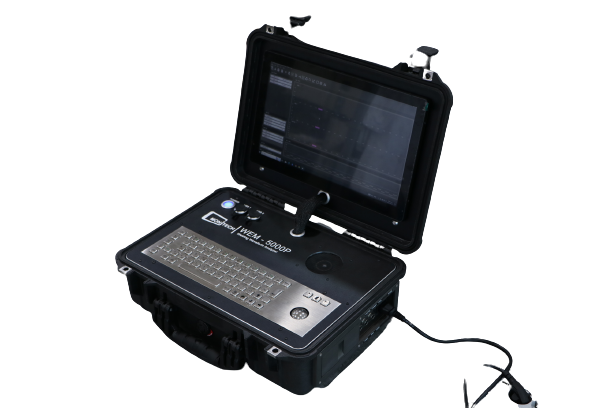

Model WEM-5000P(PORTABLE type), WEM-5000S(RACK type)

System overview
- Precise analysis and welding characteristic research through real-time monitoring of ARC welding waveforms.
- Essential equipment for welding-related research and process improvement management, widely used in most large corporations, research institutions, universities, and the like.
- Can be used as the in-house calibration reference equipment for welding machines and various measuring instruments.
- Available in two configurations: RACK type and PORTABLE type (optional).

Key functionsand features

  • Facilitates comprehensive performance evaluation of welding machines and operability assessment of welding materials.
  • Enables assessment of the wire feeding performance of welding wires.
  • Suitable for welding-specific applications with waveform zoom in/out, various calculations, and comparison functions.
  • Convenient for precise data analysis and management with a sampling frequency of 50 kHz per channel.
  • Customers can add channels for desired welding variables (temperature, wire feed speed, pressure, etc.).
  • Provides optimal portability with an industrial-grade 15" LCD Full-HD screen and an embedded industrial PC.
  • Suitable for long-term continuous measurements, but sampling adjustment is required (supporting a maximum of 50 kHz per channel).

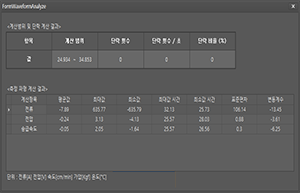

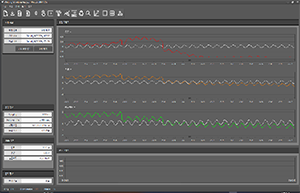

Segment waveform calculation
Waveform comparison function

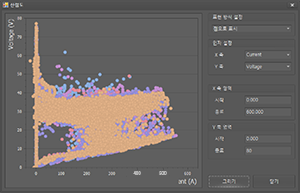

scatter plot calculation
