VITRONIC

Machine vision surface inspection equipment

Model VINSPEC

System overview
- Advanced automatic inspection system with multiple precision machine vision cameras.
- Suitable for various applications, such as OLED display and surface defects in secondary battery pouches for automotive use.
- Can be integrated into existing production lines, and the inspection system can be configured based on the equipment.
- Applies high-resolution cameras and machine vision algorithms to automatically detect and discriminate product appearance, dimensions, and defects.
- Used in product production lines to quickly identify and improve production efficiency by preventing defective products from being shipped to customers.

Video

Key functionsand features

  • Provides a convenient program to easily view the overall inspection results.
  • The program allows users to configure the screen layout (graphs, values, etc.) according to their preferences.
  • With the Calibration Master, repeatability is guaranteed.
  • Detection of defects down to a minimum of 40 μm is possible through 12 or 26-megapixel photos.

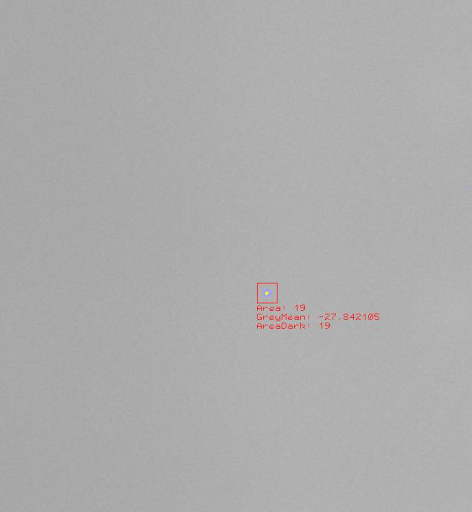

Black/White Spots/80 μm

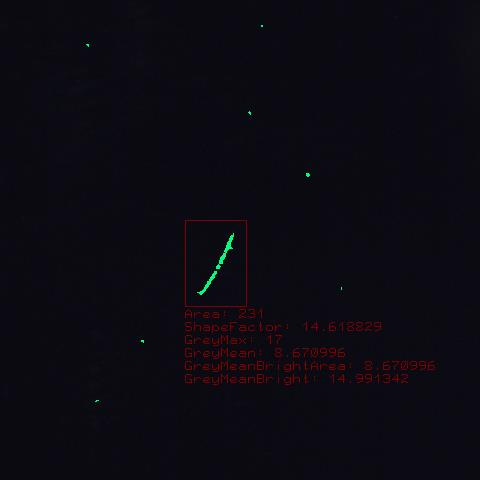

Scratches in glass and foil

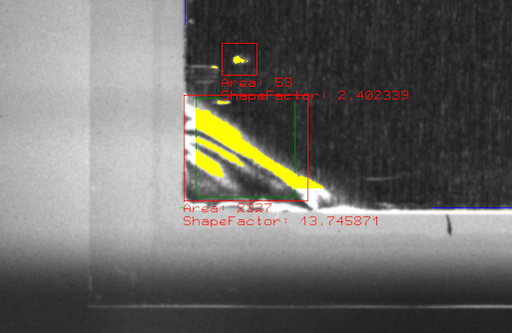

Delamination

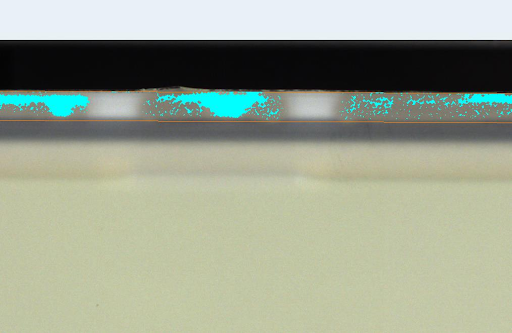

Completeness and
accuracy of glue track
