PRODUCT
NIT
High-Speed Thermal Camera
XIR-1800
- Real-time monitoring with ultra-high-speed thermal imaging for quality control in various welding processes.
- Scan Speed: Provides dedicated software for analyzing 2D thermal images at a rate of 1,000 frames per second.
- Applicable with cameras at speeds of 1,000/2,000/10,000 frames per second depending on the application.
- Ideal for real-time monitoring of resistance welding (SPOT, Seam), soldering/brazing processes, ARC, TIG, laser welding, etc.
Video
Product classification
| classification | TACHYON Series | MATRIX 1024 | LUXELL | ||
|---|---|---|---|---|---|
| Product Photo |  |
 |
 |
 |
 |

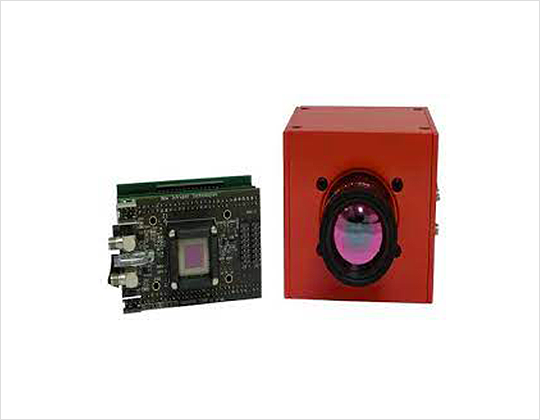

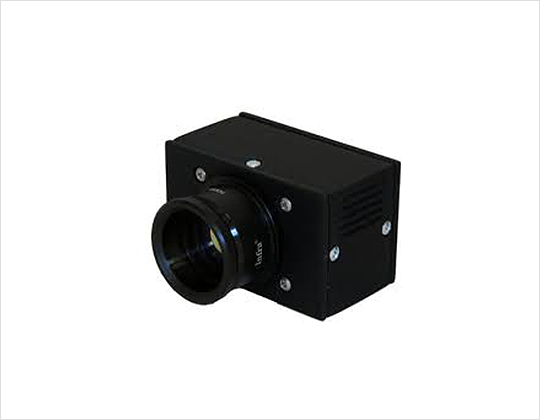

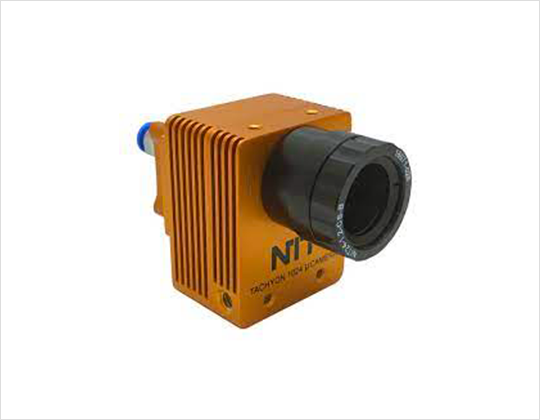

| Model | Tachyon 1024 Micro Camera |
Tachyon 16K | Tachyon 1024 Core-HS | MATRIX 1024 CORE-S | Luxell Core-S |
| FPA resolution | 32x32 | 128x128 | 32x32 | 32x32 | 16x16 |
| Frame Rate | 1,000fps | 2,000fps | 10,000fps | 100fps |
300 lines/sec(256px) 600 lines/sec(128px) 1,200 lines/sec(64px) |
Key functionsand features
- Utilizing a proprietary next-generation technology, it employs a Pbsw detector.
- Dedicated management software for real-time monitoring is provided, and communication is supported through USB or Ethernet.
- A variety of high-speed thermal cameras is available, adaptable to different equipment conditions.

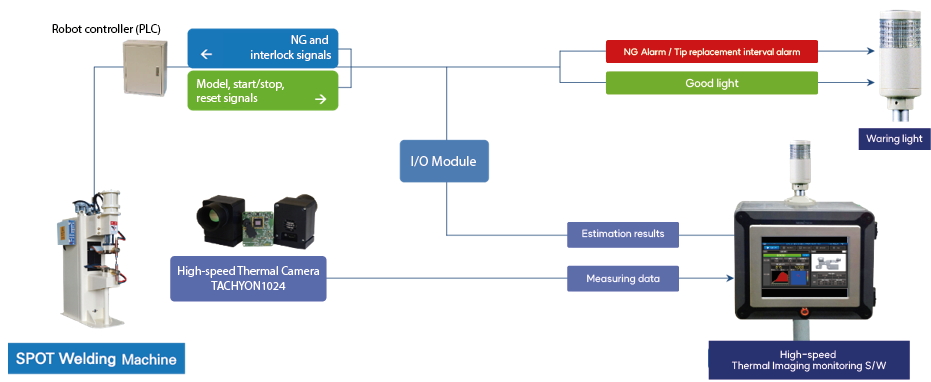

Systemconfiguration diagram
